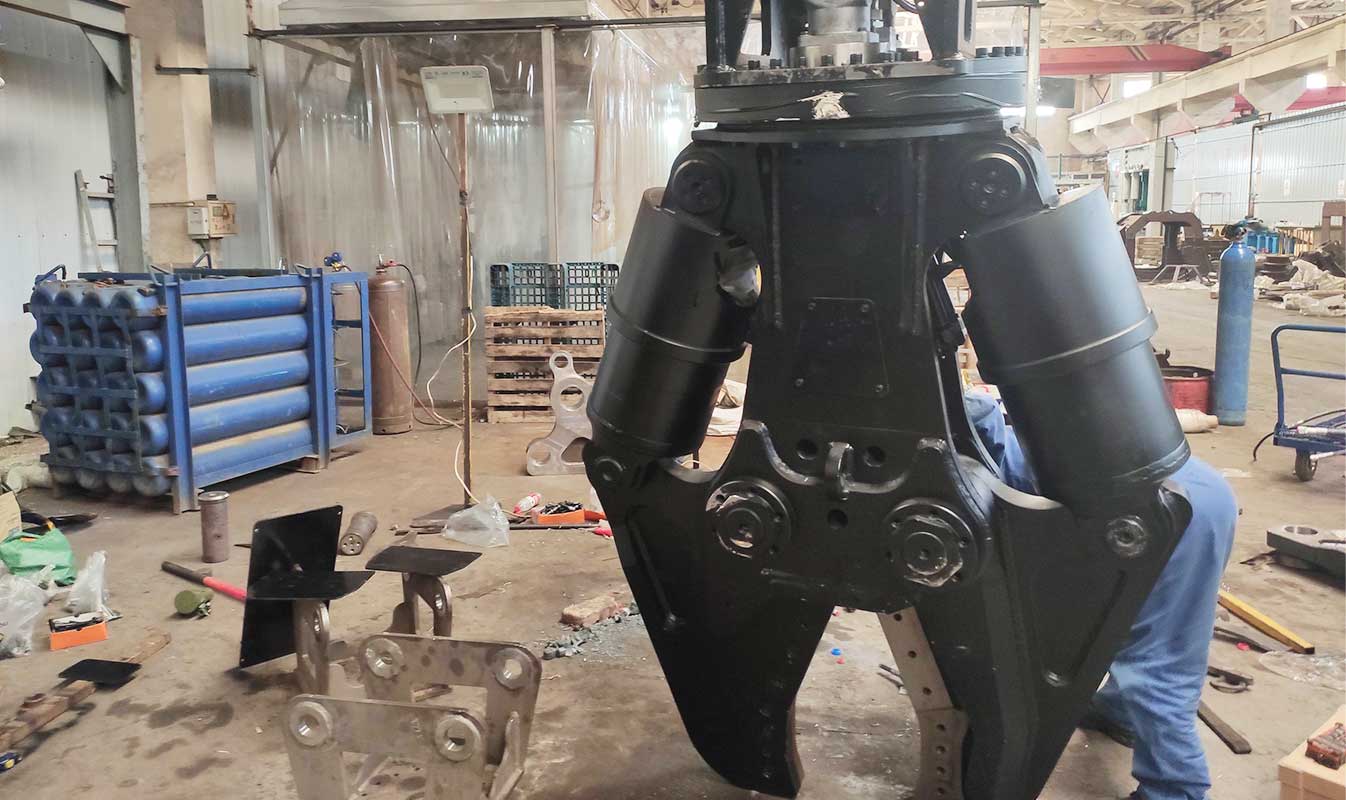

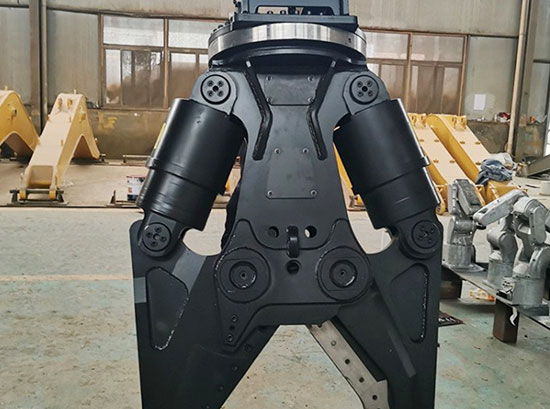

The double cylinder hydraulic shear has improved the structure of existing double cylinder hydraulic pulverizer. The alloy blade is added in double cylinder hydraulic shears for steel shearing. The shearing force is much higher than same series of hydraulic shears, which improves the construction efficiency and meets the customer's demand for recovery of harder metals such as superhard steel plate and steel bar.
l Increased working speed with speed-up valve

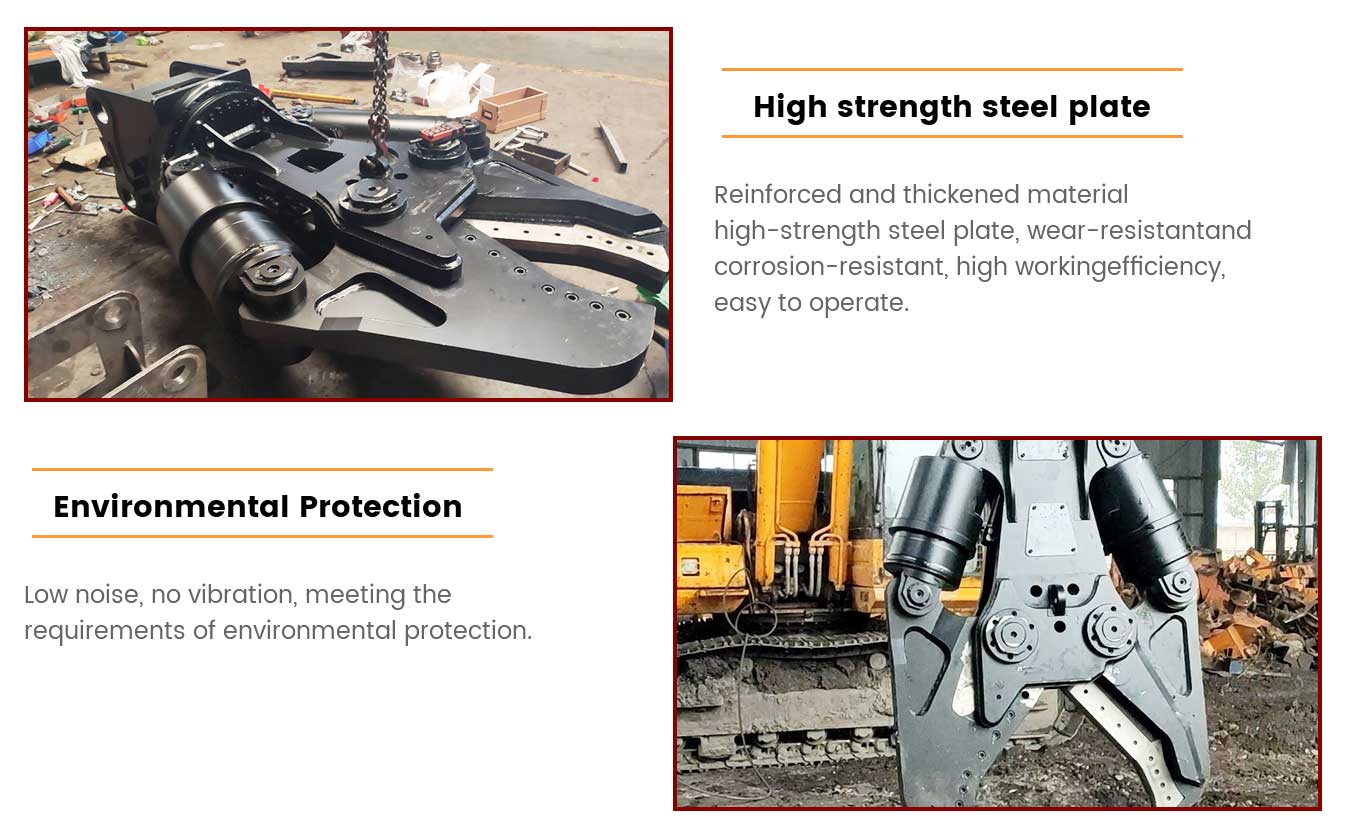

l Upgraded wear-resistant design
l Cylinder protection cover,easily detached and installed
l Ktr's unique cutter array increase cutting force and 5. productivity
l Cutter guide blades prevent scrap jam outbreak

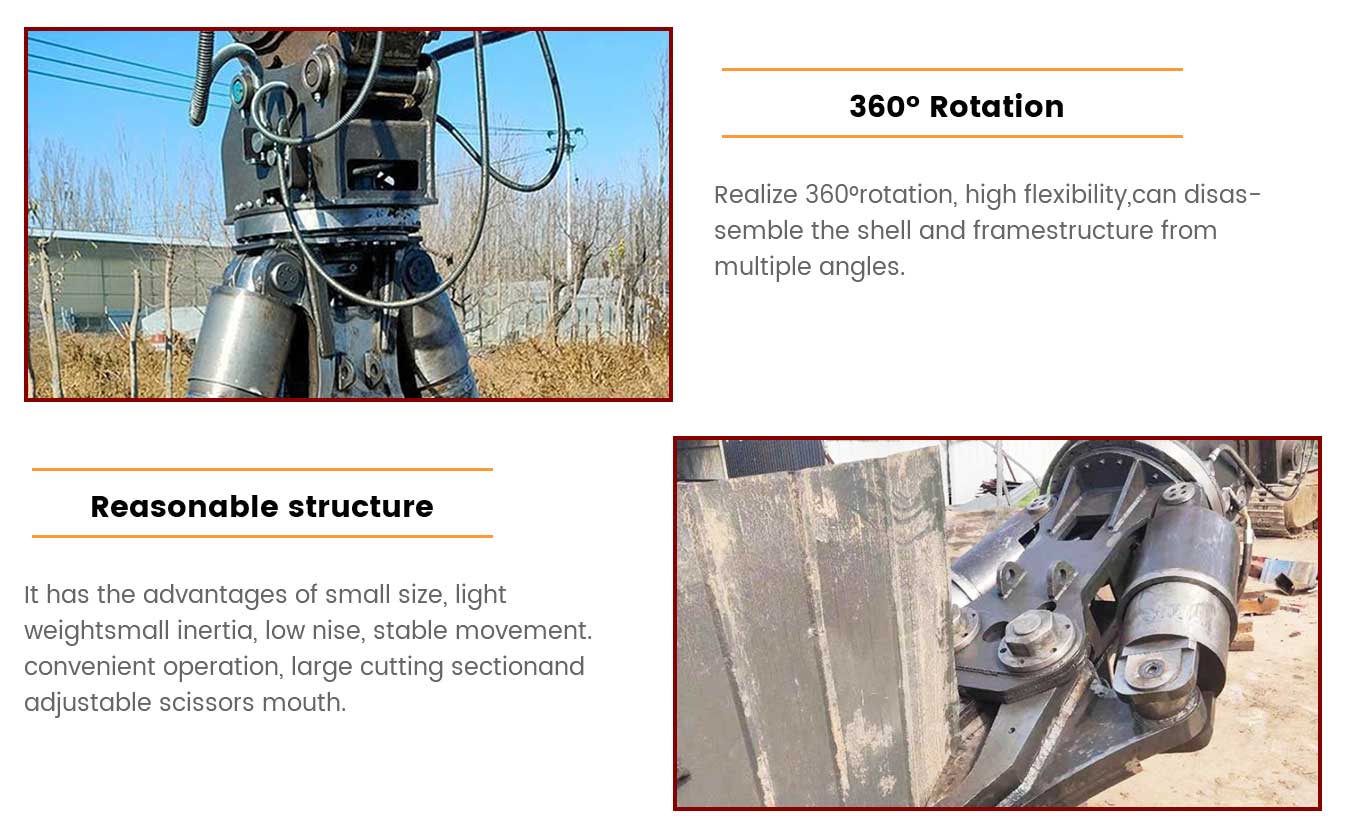

l 360°rotating

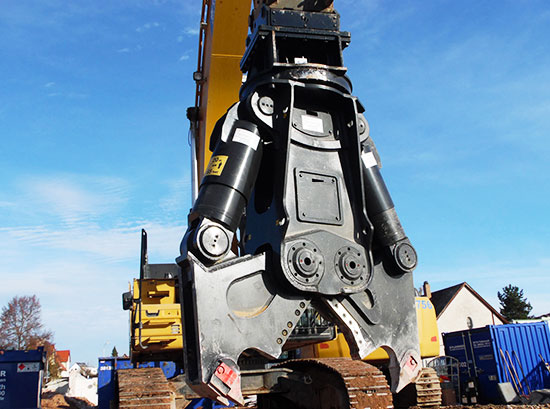

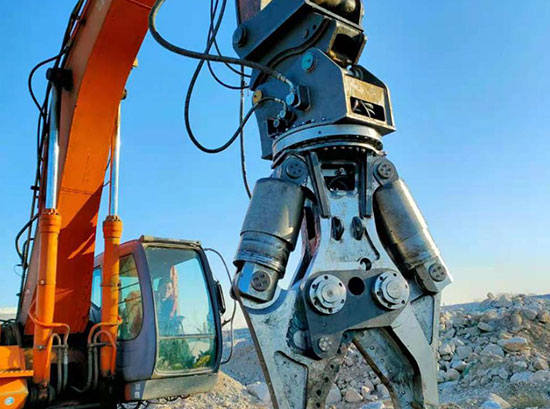

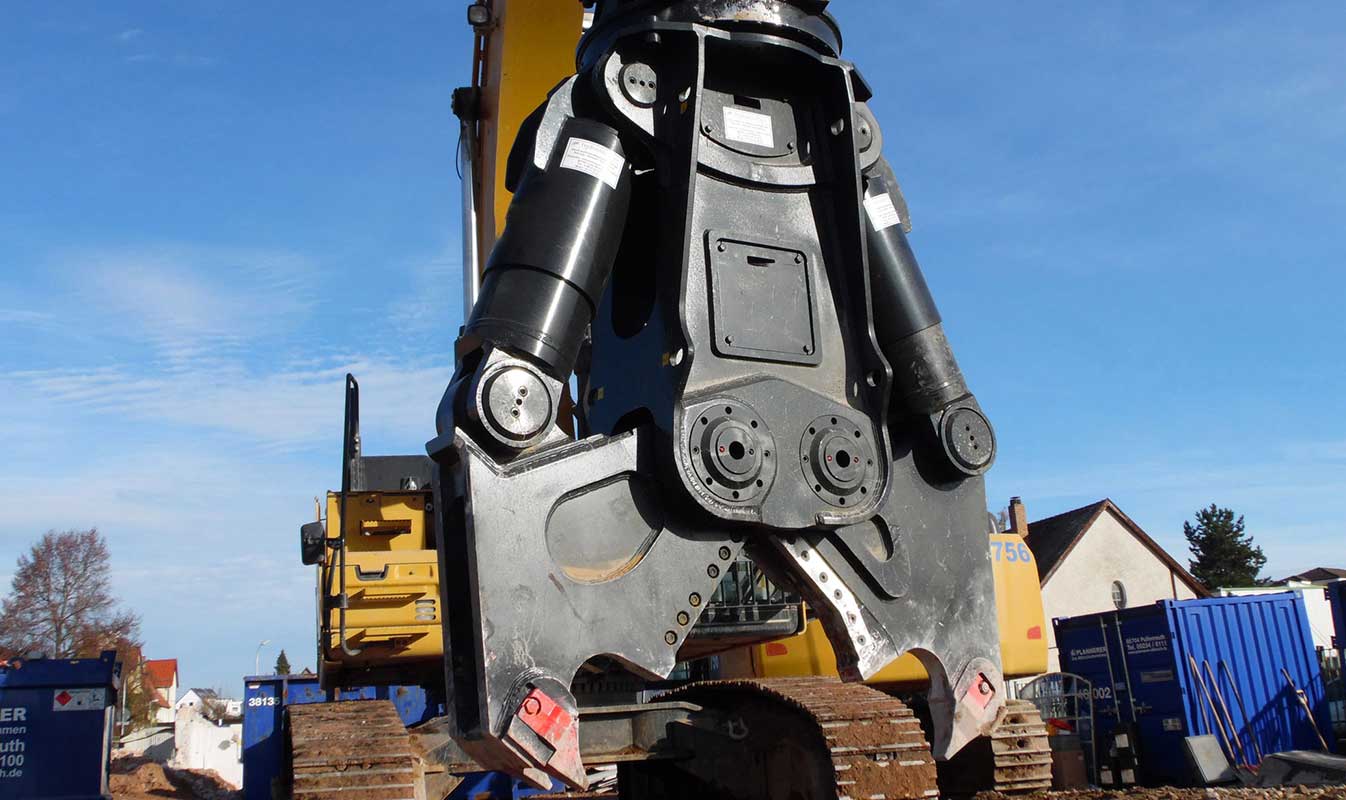

Double-cylinder hydraulic shears: installed on excavators, used for dismantling scrap cars, shearing steel bars, steel, tanks, pipes and other scrap steel, the shearing force is much higher than that of the same series of olecranon shears, improving construction efficiency and meeting customer requirements The demand for the recovery of hard metals such as steel plates and steel bars.
Model | YG-90 | YG-180 | YG-280 | YG-380 |
Application model | 6-9T | 12-18T | 20-28T | 30-40 |
Working pressure | 31.5mpa | 31.5mpa | 31.5mpa | 31.5mpa |
Overall length | 1570mm | 1950mm | 2260mm | 2570mm |
Overal weight | 800KG | 1540KG | 2800KG | 3810KG |
Maximum operating | 505mm | 645mm | 745mm | 835mm |
blade length | 435mm | 535mm | 660mm | 760mm |
Front end crushing force | 45T | 75T | 90T | 130T |
Central crushing force | 65T | 110T | 150T | 190T |
